Ultra High Speed HDMI Cable, 48Gbps

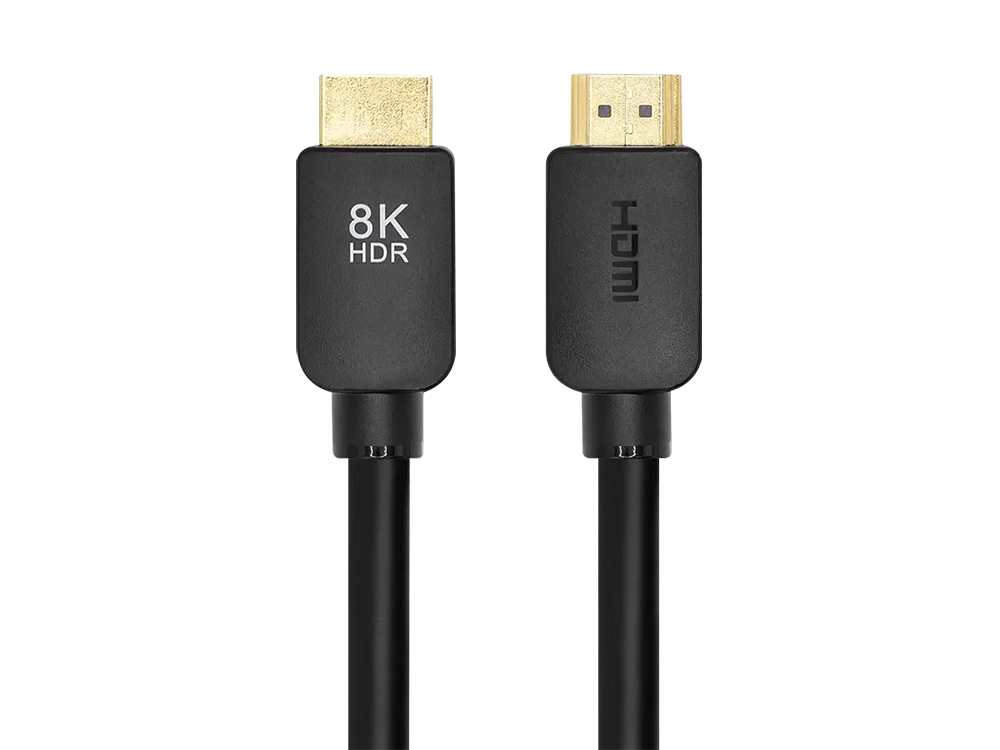

Ultra High Speed HDMI Cable, 48Gbps
Ultra high speed HDMI cable supports up to 8K@60Hz/4K@120Hz resolution, 48Gbps bandwidth, and all features found in the HDMI 2.1 specification. It features next‑gen technology, which makes it the perfect choice for the latest gaming consoles, including the Sony® PlayStation® 5, PlayStation 5 Digital Edition, Microsoft® Xbox Series X™, and Xbox® Series S. This generic branded cable is perfect for installers and systems integrators that need a reliable, unbranded Ultra High Speed HDMI Cable that they can make their own.

Feature
48Gbps Bandwidth: These cables feature up to 48Gbps bandwidth, which allows them to support high bandwidth dependent content and features, such as Dynamic HDR, Dolby Vision™, Dolby Atmos®, and DTS:X®.
Dynamic HDR: Dynamic HDR ensures every moment of a video is displayed at its ideal values for depth, detail, brightness, contrast, and wider color gamuts, optimized on a scene‑by‑scene or even a frame‑by‑frame basis.

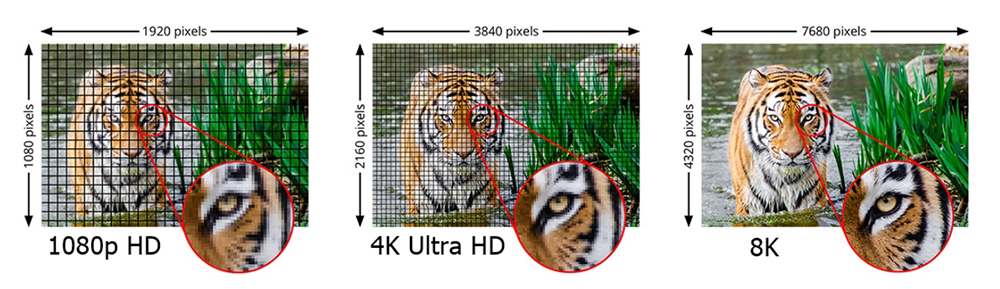

Supports up to 8K@60Hz: These cables support uncompressed video resolutions up to 8K@60Hz, including 4K@120Hz. Additionally, they can support resolutions up to 10K@120Hz using the visually lossless VESA® Display Stream Compression (DSC) 1.2a.
eARC (Enhanced Audio Return Channel): The eARC feature simplifies connectivity and is optimized for use with object‑based audio formats, such as Dolby Atmos® and DTS:X®. It ensures full compatibility between audio devices and future HDMI® 2.1 devices.


Specification

Product name Ultra High Speed HDMI Cable
Resolution Ultra HD 8K@60Hz(4K@120Hz)
Bandwith 48Gbps
Jacket PVC
Connector Gold Plated
Function: 3D, Dynamic HDR, eARC, Ethernet, VRR, QMS, QFT, ALLM, HDCP 2.2 & 2.3, CEC
Color Black / customization
Gauge 28AWG/30AWG/ customization
Length 1.5ft/3ft/4ft/5ft/6ft/10ft/15ft/customization

Advantage
1.Supports uncompressed HDMI® resolutions up to 8K@60Hz, including 3D and Multiview video


2.Supports resolutions up to 10K@120Hz using the visually lossless VESA® Display Stream Compression (DSC) 1.2a
3.Supports Dynamic HDR (High Dynamic Range) for brighter, deeper, and more lifelike colors
4.Supports extended CEC (Consumer Electronics Control) commands and functions, the HDMI Ethernet Channel, and the eARC (Enhanced Audio Return Channel) features
5.Supports AMD® FreeSync™ on the Xbox Series X™, Xbox® Series S, Xbox One™ X, and PlayStation® 4 Pro consoles
6.Supports SA‑CD, DVD‑Audio, DTS‑HD Master Audio™, Dolby TrueHD™, and other high definition audio standards
7.Supports the 21:9 cinema aspect ratio
8.Supports up to 32 audio channels and a 1536kHz audio sampling rate
9.Supports Deep Color with up to 16‑bits per channel, including the Sony® x.v.Color™ standard
10.Supports simultaneous delivery of dual video streams to multiple users on the same screen
11.Supports Game Mode Variable Refresh Rate (VRR) and produces a more fluid and detailed gameplay experience
